ELFK-实时抓取WAF硬件设备日志

1、前言

本篇博客记录我司一台山石waf设备，由于日志查看过于繁琐，需反复登录设备，缺少实时分析和预警功能，后开启设备syslog udp：514端口，通过logstash正则进行数据结构化处理，输出到elasticsearch中，最后通过kibaka进行展示的完整过程，EK的安装及配置方法，请参考：ELK-Stack简介及安装手册

2、部署环境介绍

平台	IP	用途	E版本	L版本	K版本
CentOS 6.7 64Bit	192.168.1.241	ES+Cerebro+Kibana+Logstash	6.7.0	6.7.0	6.7.0

3、配置硬件WAF

3.1、开启山石WAF日志服务器

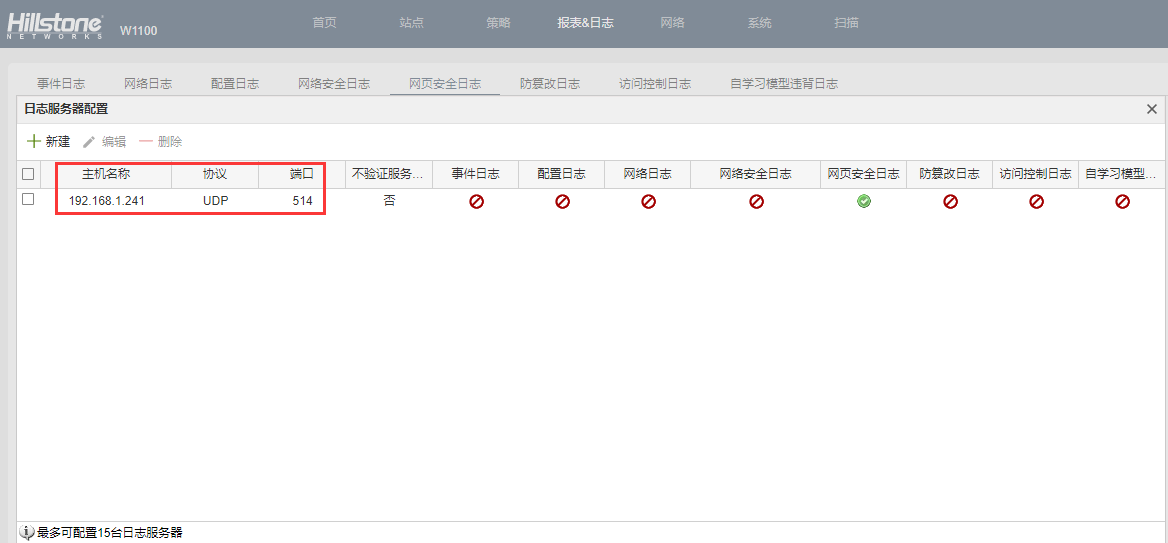

此处填写ES的地址，我们只针对“网页安全日志”进行收集分析

image_1dodk7i0n1b811sr21lh114chr9m9.png-41.2kB

4、Logstash的配置

本篇仅记录抓取syslog的全过程，Logstash的安装请参考：ELFK-实时抓取HAPROXY日志

4.1、waf样本数据分析与正则编写

样本数据

Jun 15 22:39:26 261030KSA3454057(root) 4144c203 Web-security@SYS: CRITICAL! From 36.110.101.2:59780 to 192.168.1.133:443, site name: 130-ejf123-443, policy name: 禁止爬虫部分开启SQL, protection type: 104, protection subtype: 10400, action: pass, followed_action: NONE, block_time: N/A, rule ID: 1040010022, rule name: infoleak_srverr:http_stu, vul_id: N/A, severity: 2, domain name: ccbxjmob.ejf123.com, HTTP method: GET, HTTP url: /jfpt/static/html/template_ccbxjmob/1.0/20180718140822/images/favicon.ico, source country/region: CN, message: HTTP Status Code: Server Return HTTP Status Code 404 (Not Found), Matched Data: 404 found within RESPONSE_STATUS: 404, attack count: 1

正则分拆：

(?:%{SYSLOGTIMESTAMP:syslog_timestamp}|%{TIMESTAMP_ISO8601:timestamp8601}) (?<服务器信息>\S+ \S+ \S+:) (?<告警级别>\S+\!?) (?<A>\S+) (?<客户端IP>%{IP}):(?<客户端端口>%{INT}) (?<B>\S+) (?<服务端IP>%{IP}):(?<服务端端口>%{INT}), (?<C>\S+ \S+) (?<站点名称>\S+) (?<D>\S+ \S+) (?<策略名称>\S+) (?<E>\S+ \S+) (?<防护类型>\S+) (?<F>\S+ \S+) (?<防护子类型>\S+) (?<G>\S+) (?<动作>\S+) (?<H>\S+) (?<后续动作>\S+) (?<J>\S+) (?<阻塞时间>\S+) (?<K>\S+ \S+) (?<规则ID>\S+) (?<L>\S+ \S+) (?<规则名称>\S+) (?<M>\S+) (?<漏洞ID>\S+) (?<I>\S+ \S+) (?<O>\S+ \S+) (?<域名>%{HOSTNAME}\S+) (?<Q>\S+ \S+) (?<HTTP请求方法>\S+) (?<P>\S+ \S+) (?<HTTPURL>\S+) (?<R>\S+ \S+) (?<攻击源>\S+) (?<X>\S+) (?<消息>.*,) (?<T>\S+ \S+) (?<攻击次数>%{BASE16NUM})

Kibana Grok Debug：

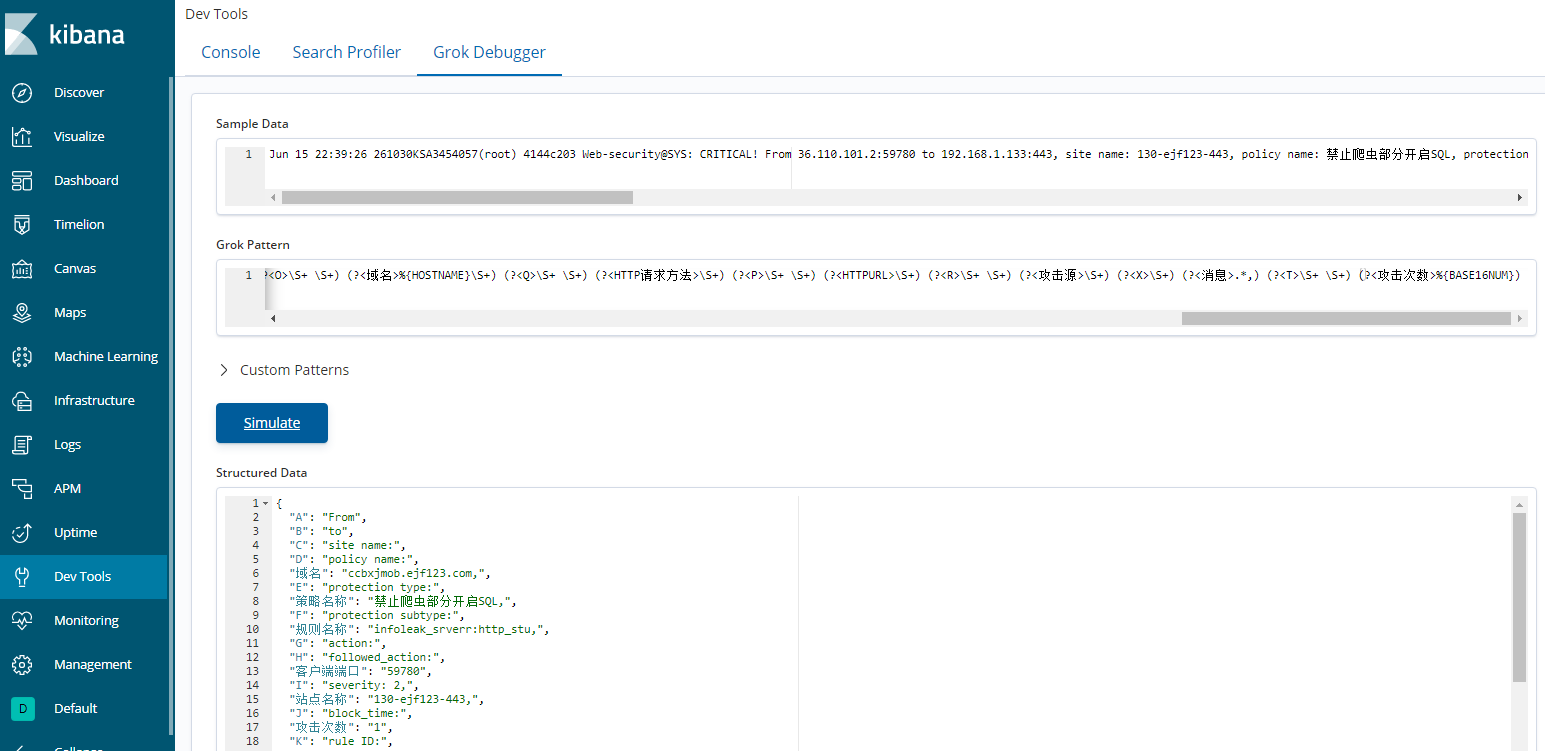

Simulate后，如无报错则表示规则生效，数据结构化详情见Structured Data一栏

image_1dodl7665p2n1ta1ol63utvag9.png-102kB

4.2、导入waf_patterns规则库

[root@elk patterns]# pwd
/usr/share/logstash/patterns
[root@elk patterns]# cat waf_patterns
#20190615 wafaccess log from 192.168.1.133
WAFACCESS (?:%{SYSLOGTIMESTAMP:syslog_timestamp}|%{TIMESTAMP_ISO8601:timestamp8601}) (?<服务器信息>\S+ \S+ \S+:) (?<告警级别>\S+\!?) (?<A>\S+) (?<客户端IP>%{IP}):(?<客户端端口>%{INT}) (?<B>\S+) (?<服务端IP>%{IP}):(?<服务端端口>%{INT}), (?<C>\S+ \S+) (?<站点名称>\S+) (?<D>\S+ \S+) (?<策略名称>\S+) (?<E>\S+ \S+) (?<防护类型>\S+) (?<F>\S+ \S+) (?<防护子类型>\S+) (?<G>\S+) (?<动作>\S+) (?<H>\S+) (?<后续动作>\S+) (?<J>\S+) (?<阻塞时间>\S+) (?<K>\S+ \S+) (?<规则ID>\S+) (?<L>\S+ \S+) (?<规则名称>\S+) (?<M>\S+) (?<漏洞ID>\S+) (?<I>\S+ \S+) (?<O>\S+ \S+) (?<域名>%{HOSTNAME}\S+) (?<Q>\S+ \S+) (?<HTTP请求方法>\S+) (?<P>\S+ \S+) (?<HTTPURL>\S+) (?<R>\S+ \S+) (?<攻击源>\S+) (?<X>\S+) (?<消息>.*,) (?<T>\S+ \S+) (?<攻击次数>%{BASE16NUM})

4.3、导入waf.conf配置文件

提示：本次收集山石WAF的日志规则库，均为自行编写，时间字段为logstsh自带正则实现；

[root@elk conf.d]# pwd
/etc/logstash/conf.d
[root@elk conf.d]# cat waf.conf
# Sample Logstash configuration for creating a simple
# Beats -> Logstash -> Elasticsearch pipeline.
input {
 syslog {
    type => "waf-accesslog"
    host => "192.168.1.241"
    port => "514"
#    tags => "waf"
    facility_labels => "local5"
  }
}

filter {
  if [type] == "waf-accesslog" {
    grok {
        patterns_dir => ["/usr/share/logstash/patterns"]
        match => { "message" => "%{WAFACCESS}" }
    }
    ruby {
        code => "event.set('timestamp', event.get('@timestamp'))"
    }
    mutate {
      rename => { "host" => "host.name" }
      remove_field => ["A","B","C","D","E","F","G","H","I","J","K","L","M","O","P","Q","R","T","X"]
      remove_field => ["message"]
    }
  }
}

output {
  if [type] == "waf-accesslog" {
    elasticsearch {
    hosts => ["192.168.1.241:9200"]
    index => "waf-accesslog-%{+YYYY.MM.dd}"
    }
  }

}

4.4、重启logstash

提示：日志如无ERROR级别的日志，表示数据已开始向ES导入

[root@elk logstash]# service logstash restart
[root@elk logstash]# ss -tlnup | grep 514
udp    UNCONN     0      0          192.168.1.241:514                   *:*      users:(("java",10643,101))
tcp    LISTEN     0      50         192.168.1.241:514                   *:*      users:(("java",10643,86))
[root@elk logstash]# tail -f /var/log/logstash/logstash-plain.log

4.5、登录kibana查看数据情况

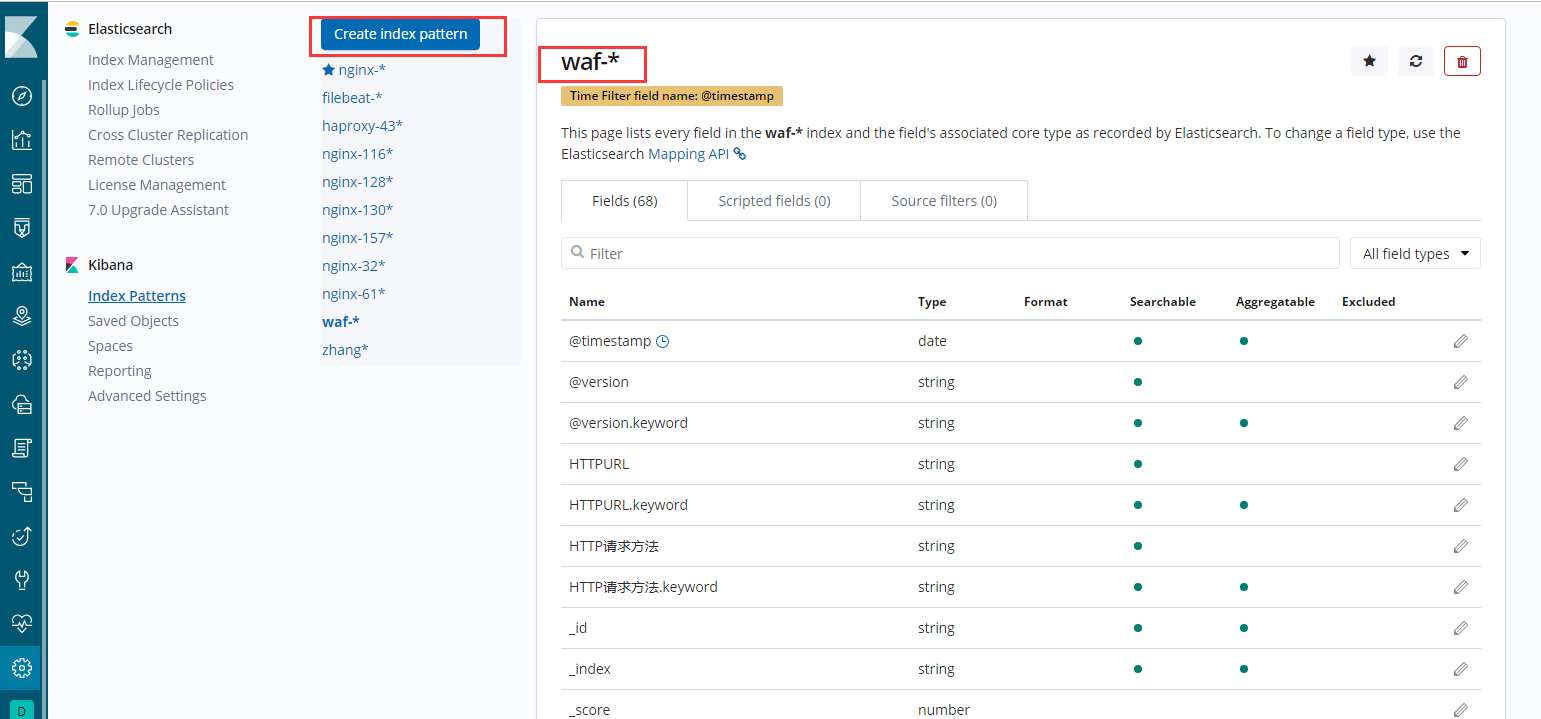

建立WAF索引

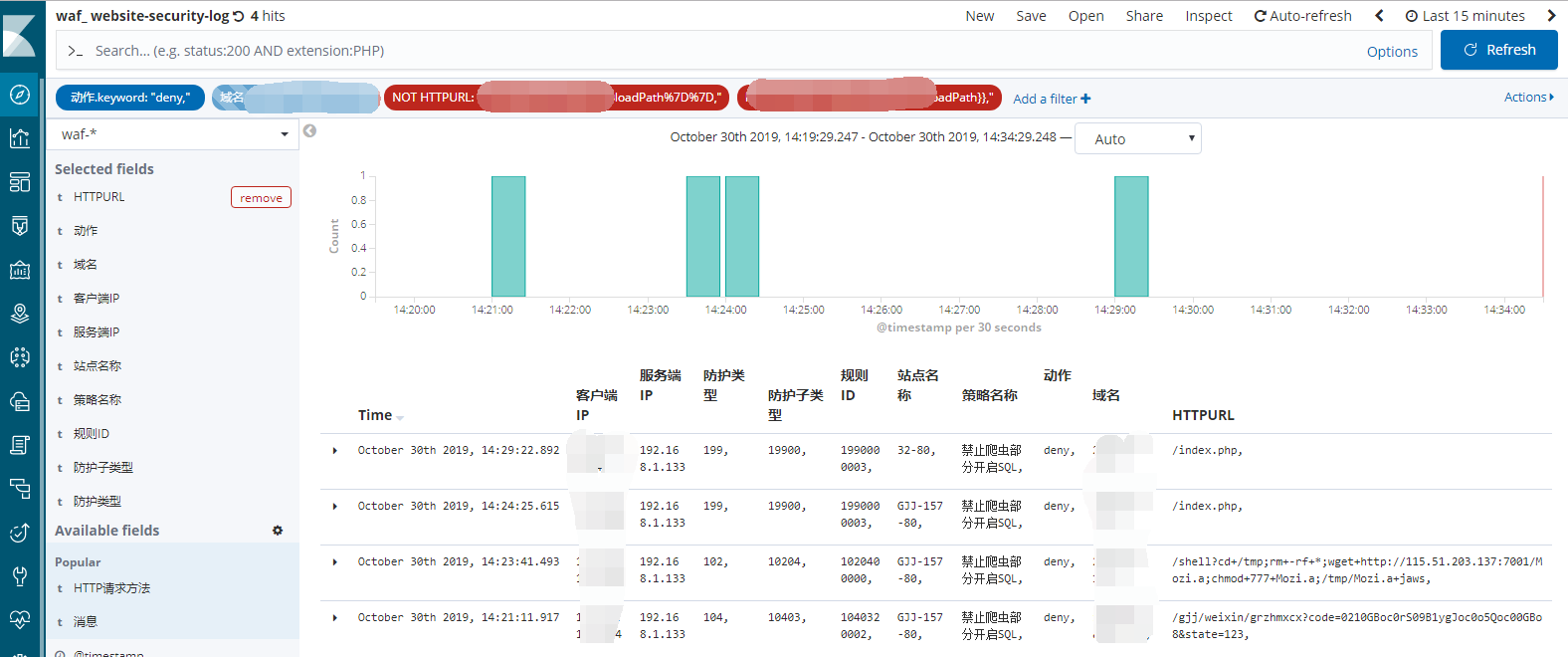

通过fields及filter对数据进行过滤展示
